CADE Reef S3/P 2200
CADE REEF S3/P SERIES

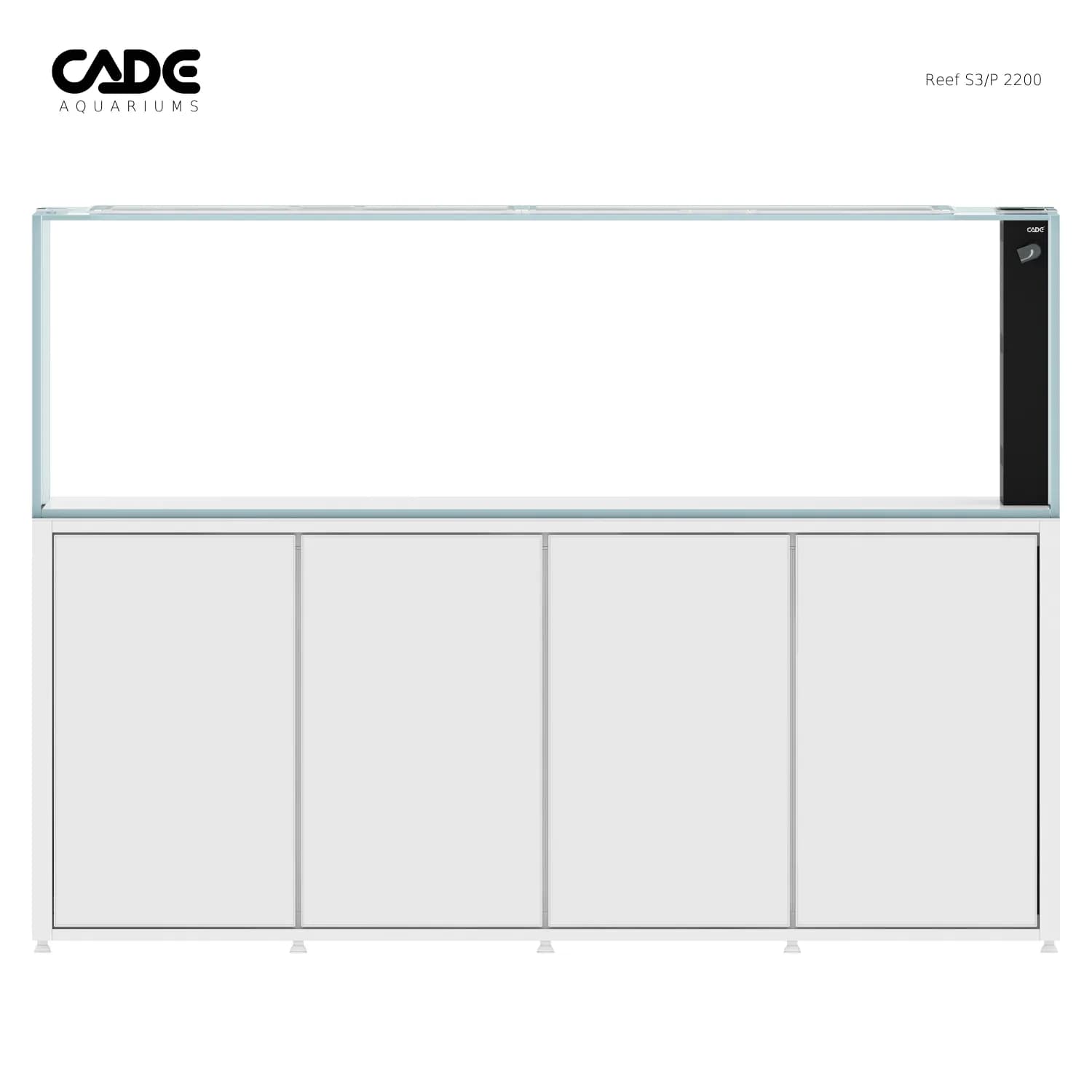

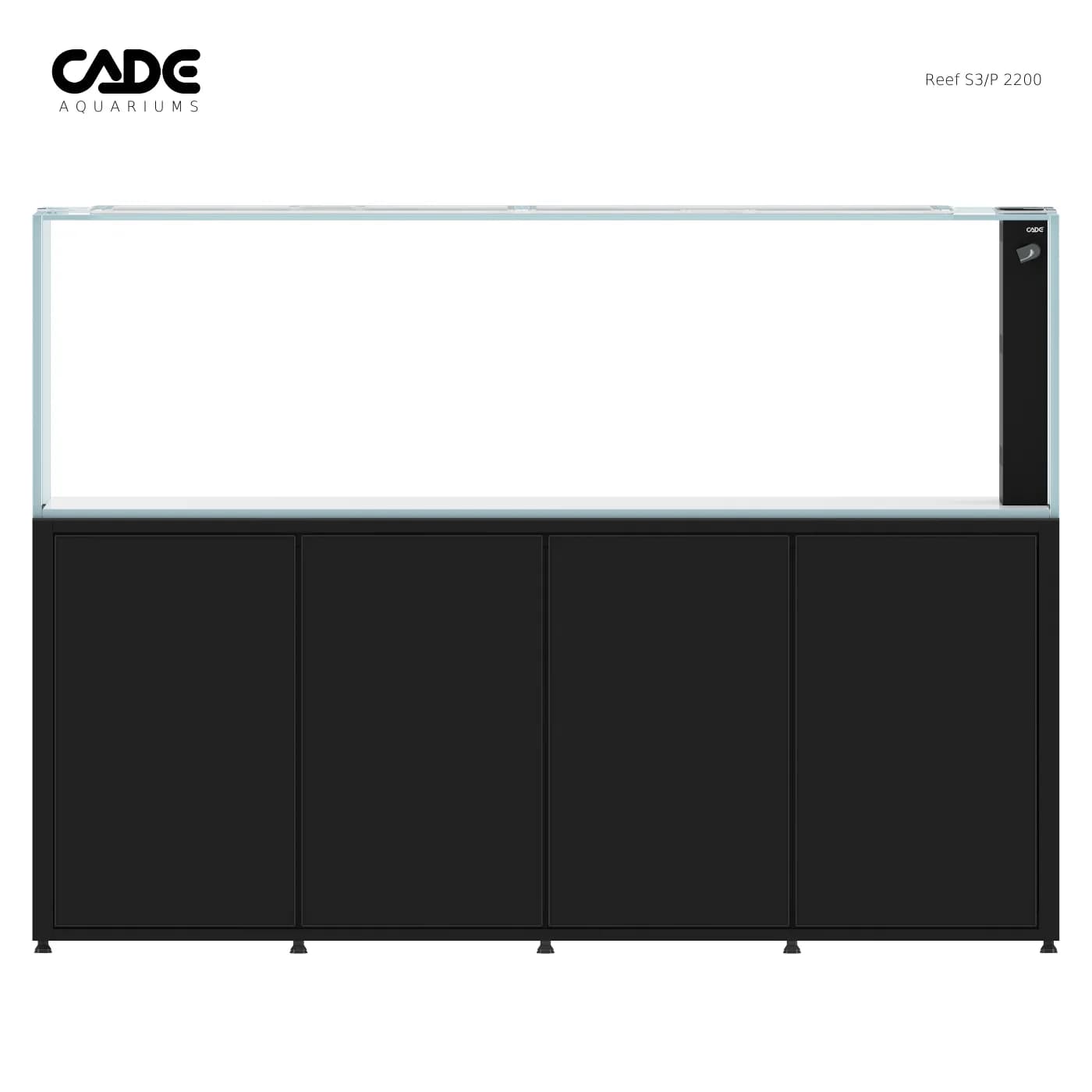

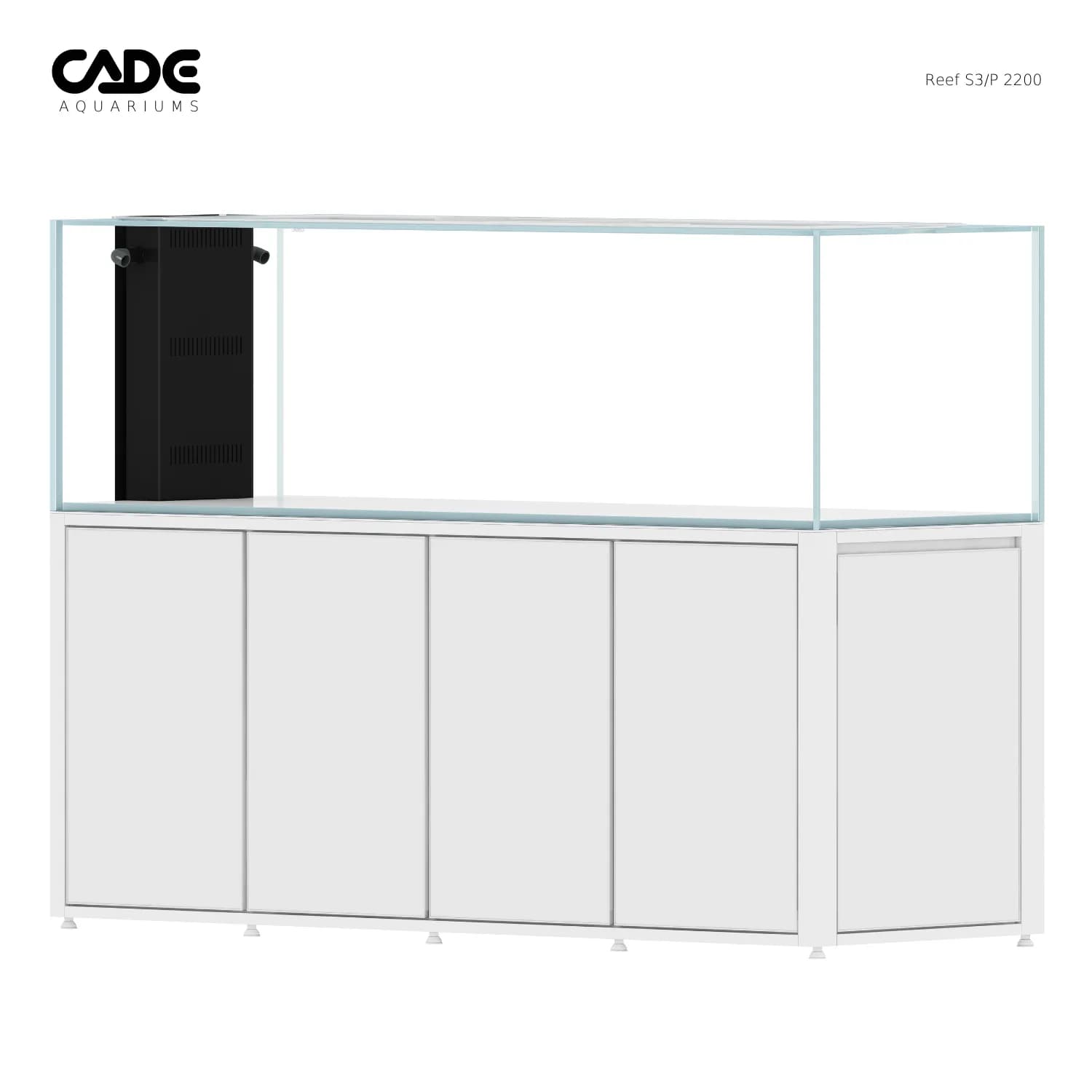

CADE Reef S3/P 2200

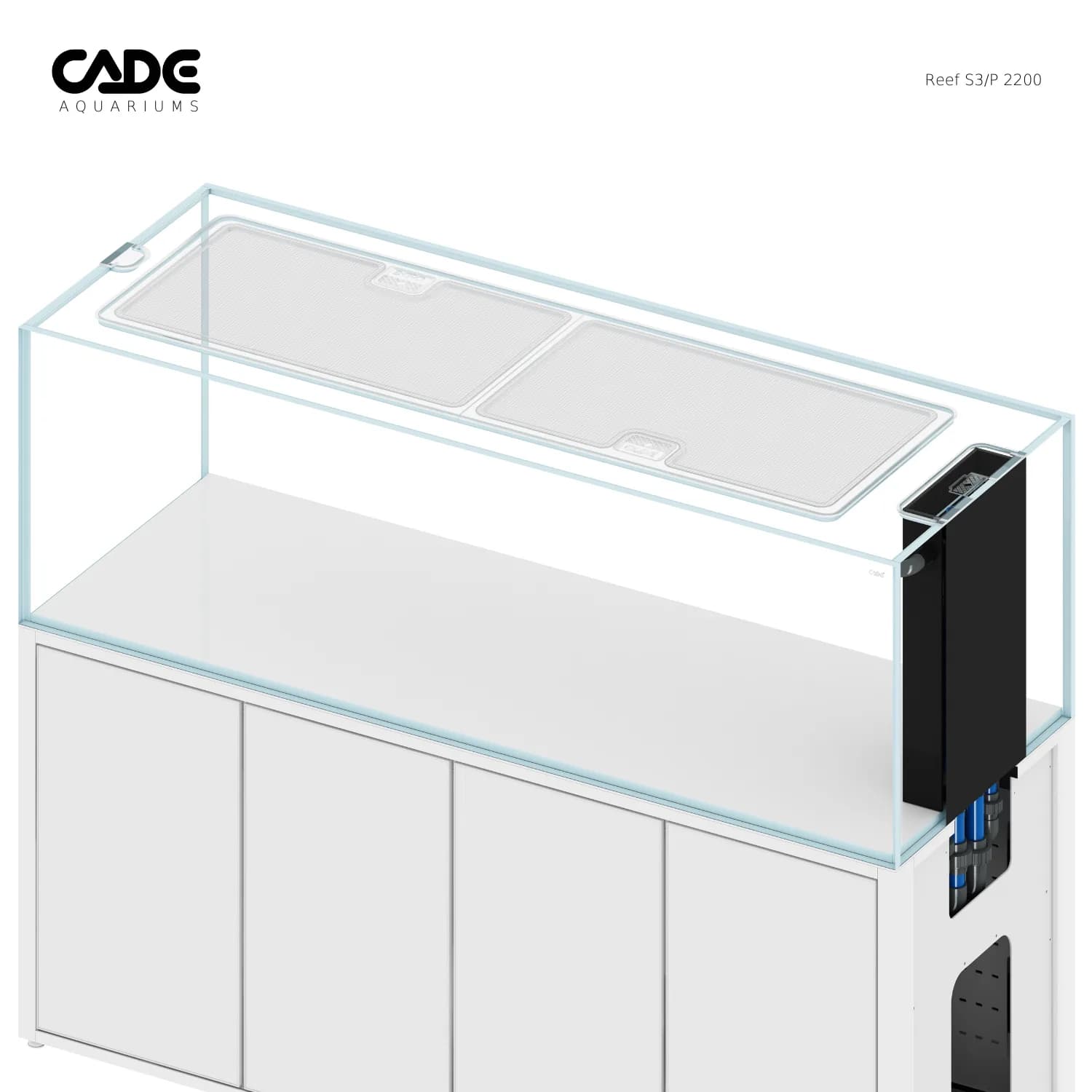

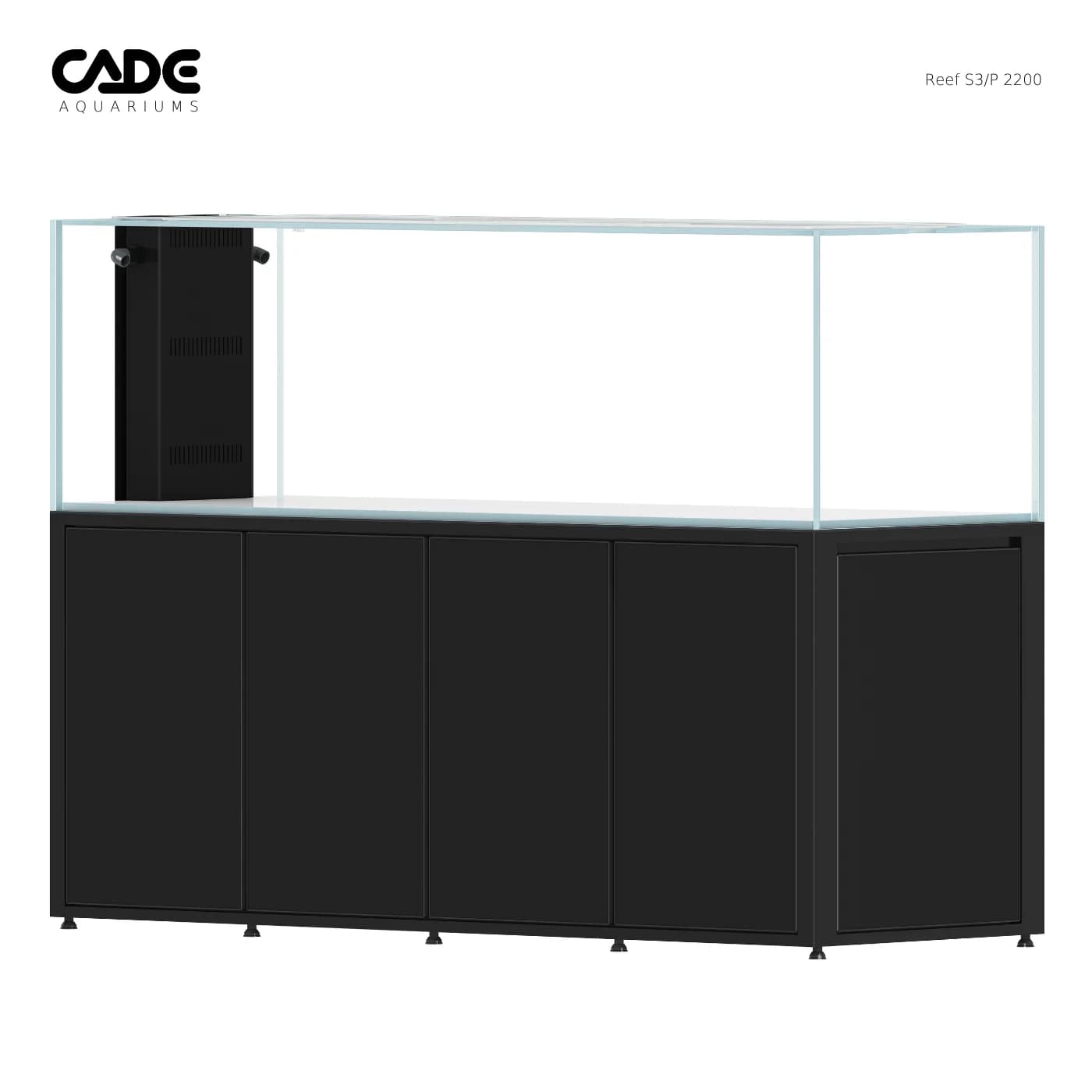

CADE's flagship reef system — an extra-wide, Euro-braced tank with premium raceway filtration for serious, large-scale reef builds.

Euro braced, rimless designTriple-intake weir1144L display capacity
Wide-body, Euro-braced, built to last
Construction

Wide-body, Euro-braced, built to last

Extra-wide and Euro-braced for strength, the S3/P is built from ultra-clear 19mm Opti-Clear glass with precision German Wacker silicone and a laser-etched logo. The wider footprint opens up more aquascaping depth and lets you appreciate coral growth from every angle.

  • 19mm Opti-Clear glass, Euro braced (10mm)

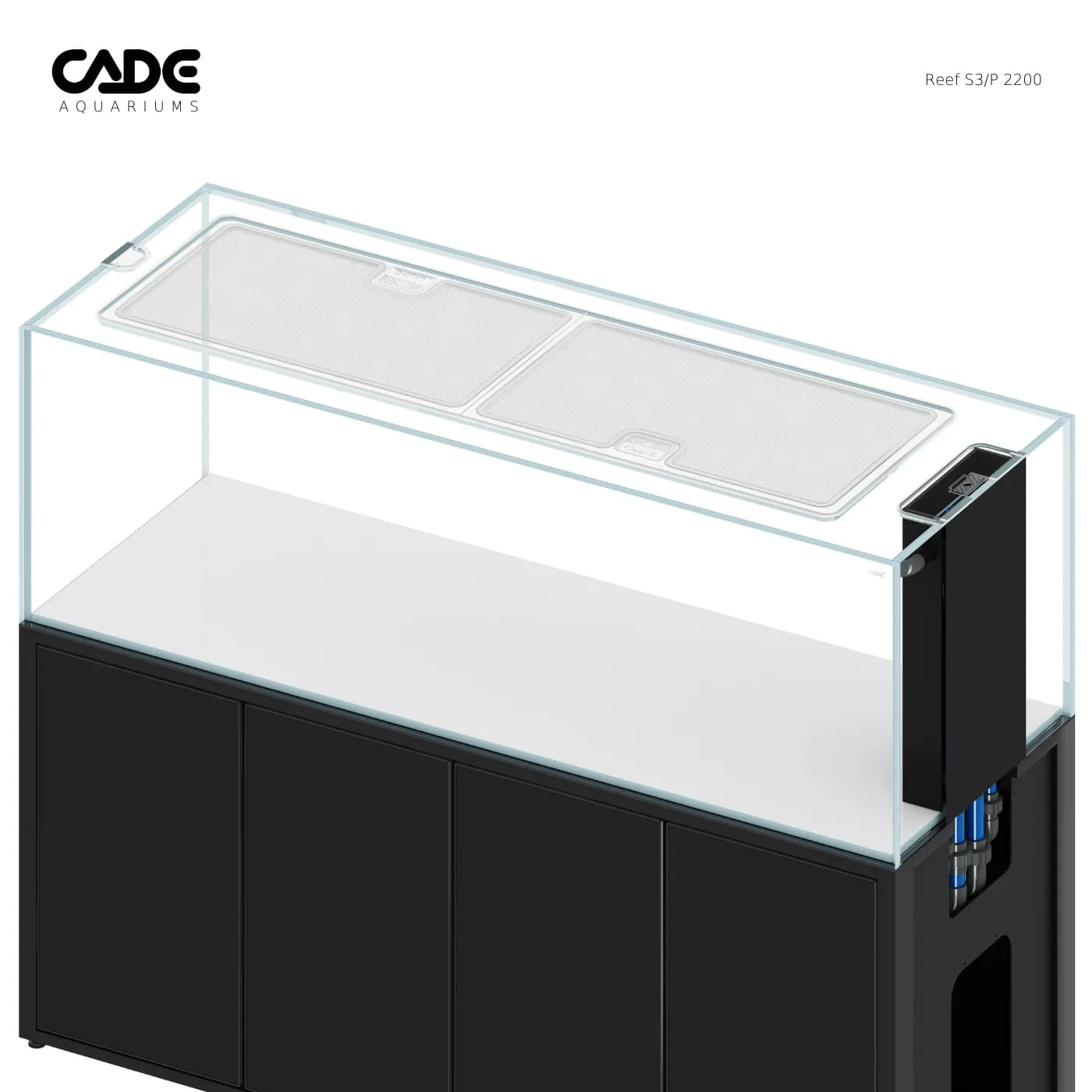

  • Rimless with pre-assembled polycarbonate jump guard
  • White laminated base, suited to bare-bottom or shallow sand
A weir engineered for a big system
Water management

A weir engineered for a big system

The slimline glass weir draws from three levels — surface, mid and low — capturing debris no matter where it sits, with a glass channel guiding water efficiently to drainage and dual drainpipes for silent, reliable operation.

  • Triple-level intakes: surface, mid, low
  • Dual down-flow pipes (main + emergency) with fine-tune gate valve
  • Two return outlets concealed within the weir, each with a non-return valve
Raceway-style flow, zero dead zones
Filtration

Raceway-style flow, zero dead zones

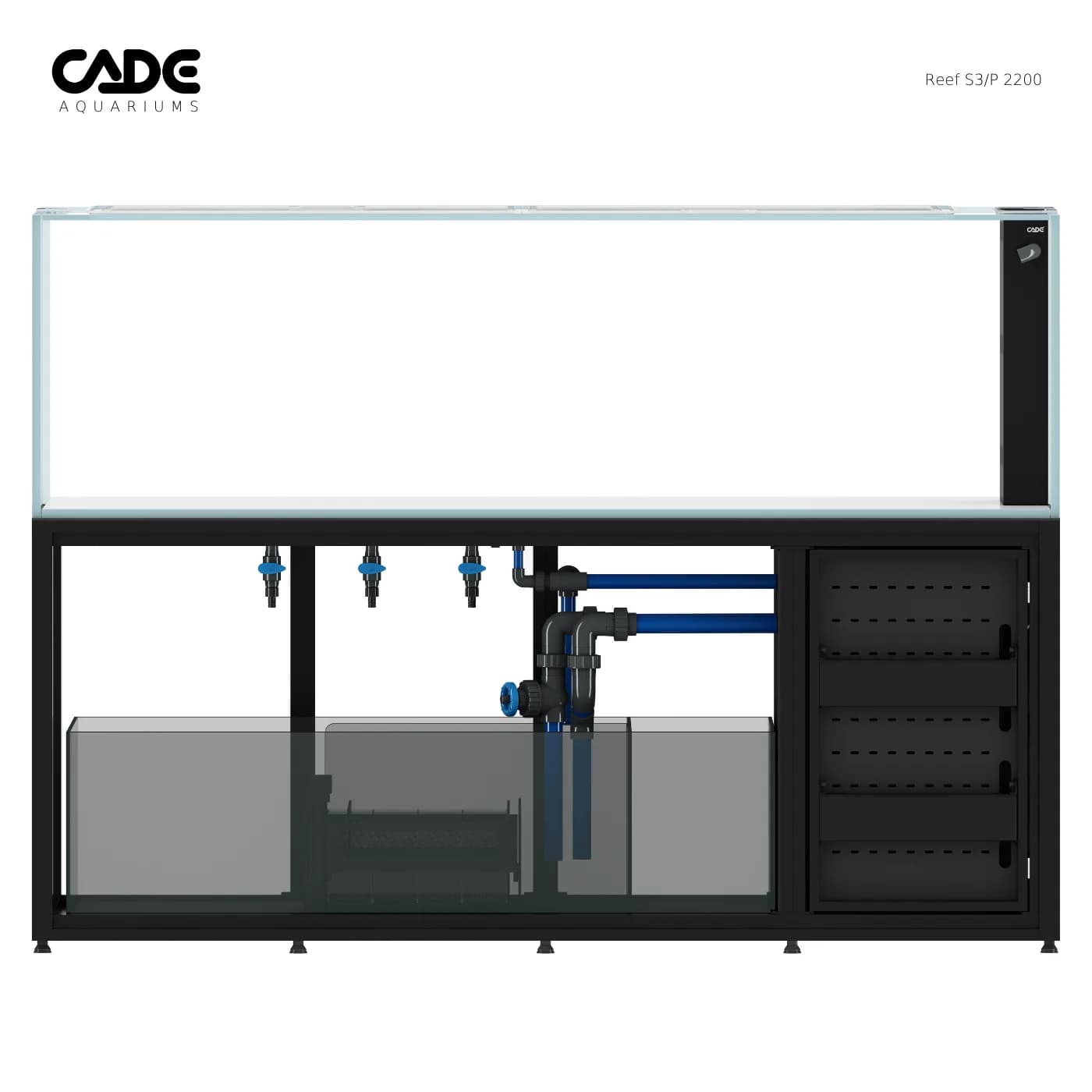

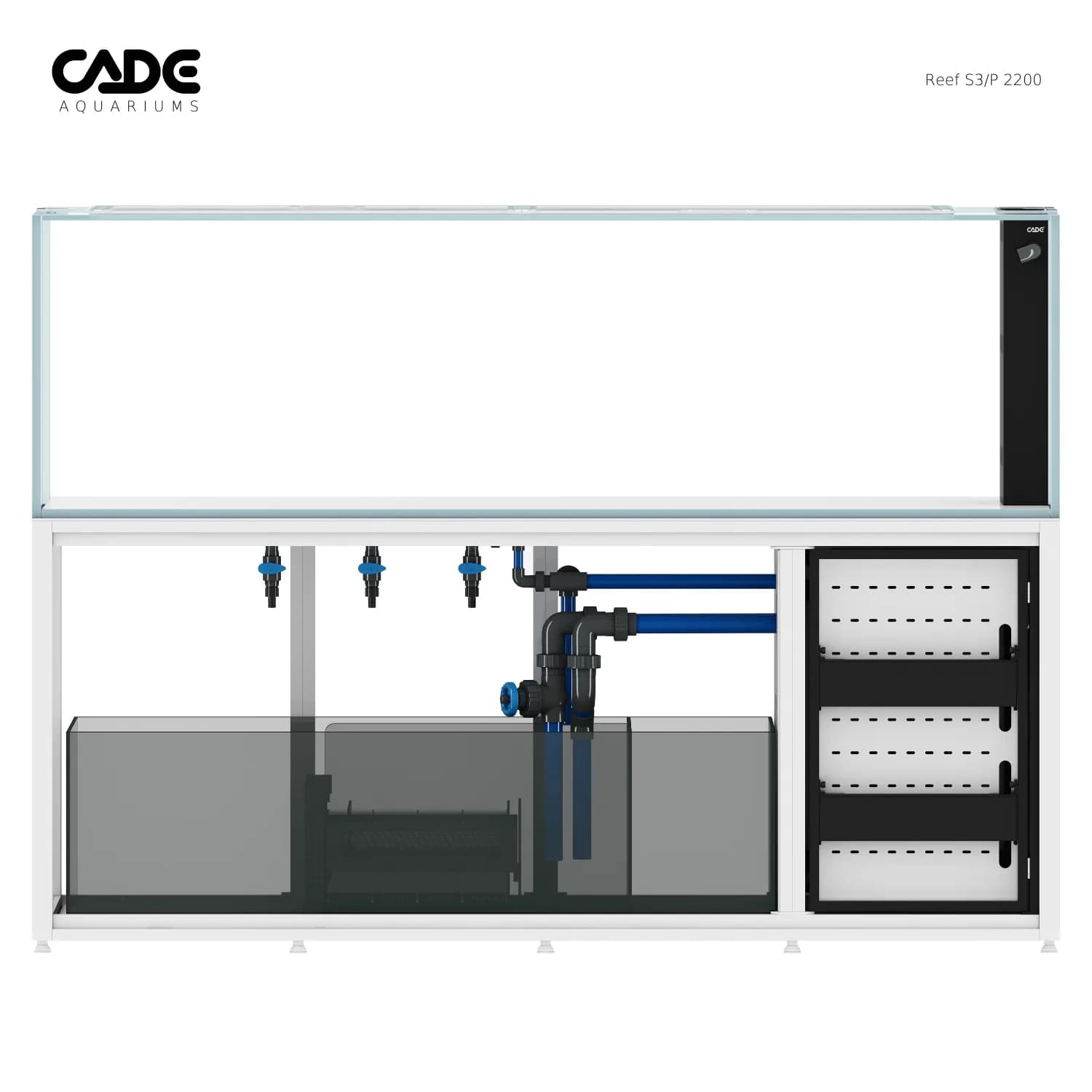

The sump uses a raceway layout designed to eliminate dead spots and make the most of the available space, moving water through skimmer/reactor chambers and into removable media baskets for solid contact time without needing separate reactors.

  • Roller-mat ready, no filter socks
  • Triton Algae Tray for nutrient export, also usable as a frag rack
  • Removable media baskets in the biological chamber
  • Return chamber sized to fit high-flow pumps

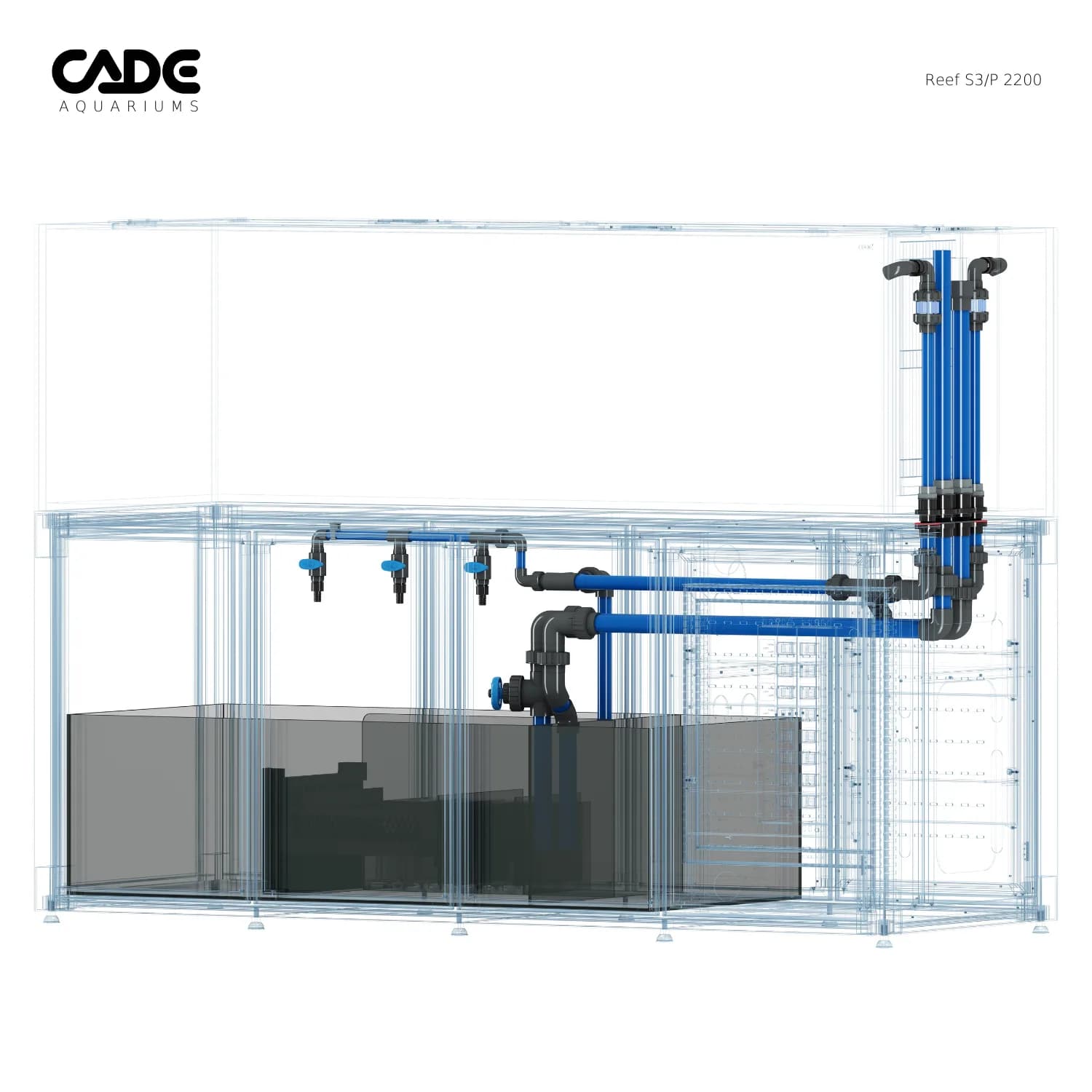

Quick-fit plumbing, minutes not hours
Assembly

Quick-fit plumbing, minutes not hours

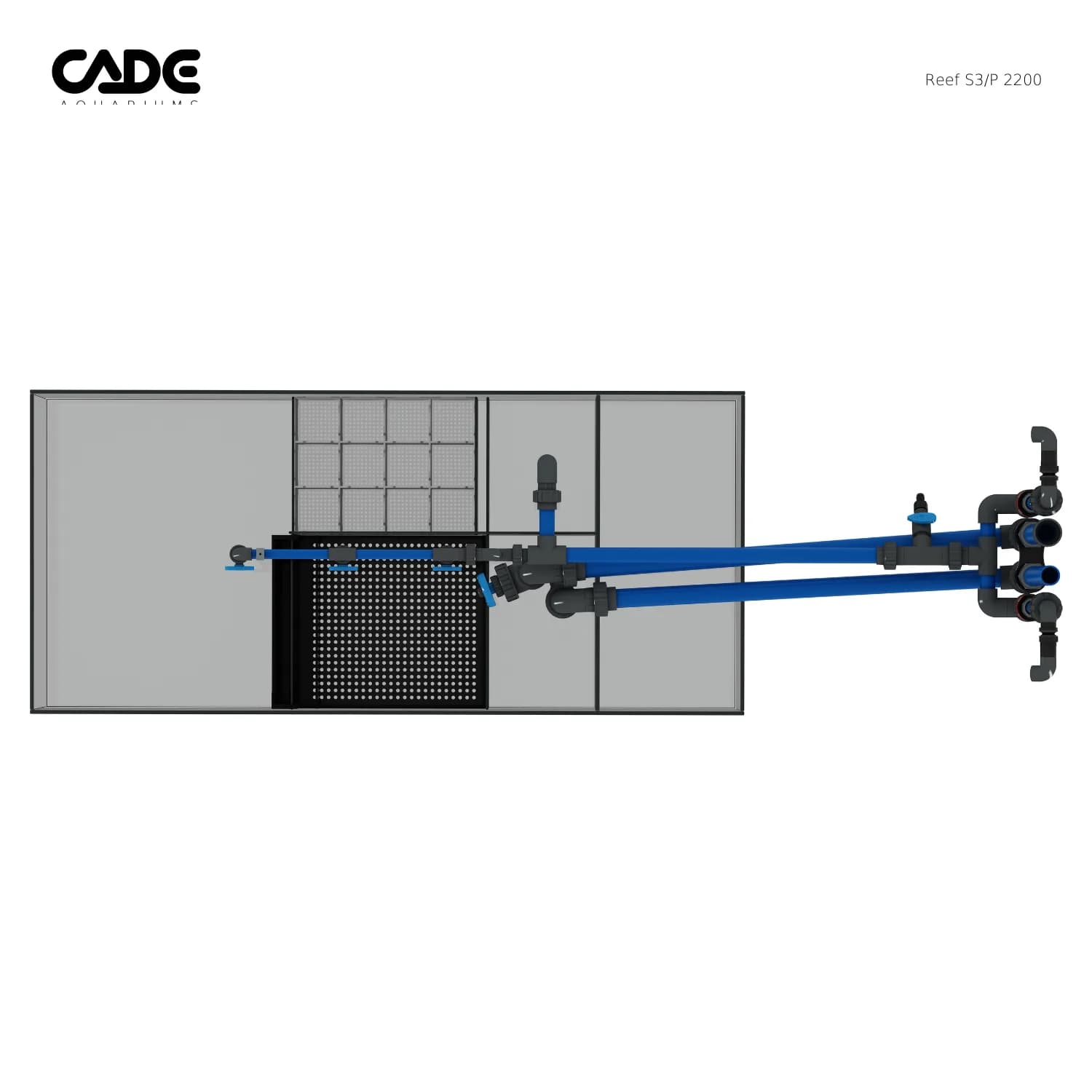

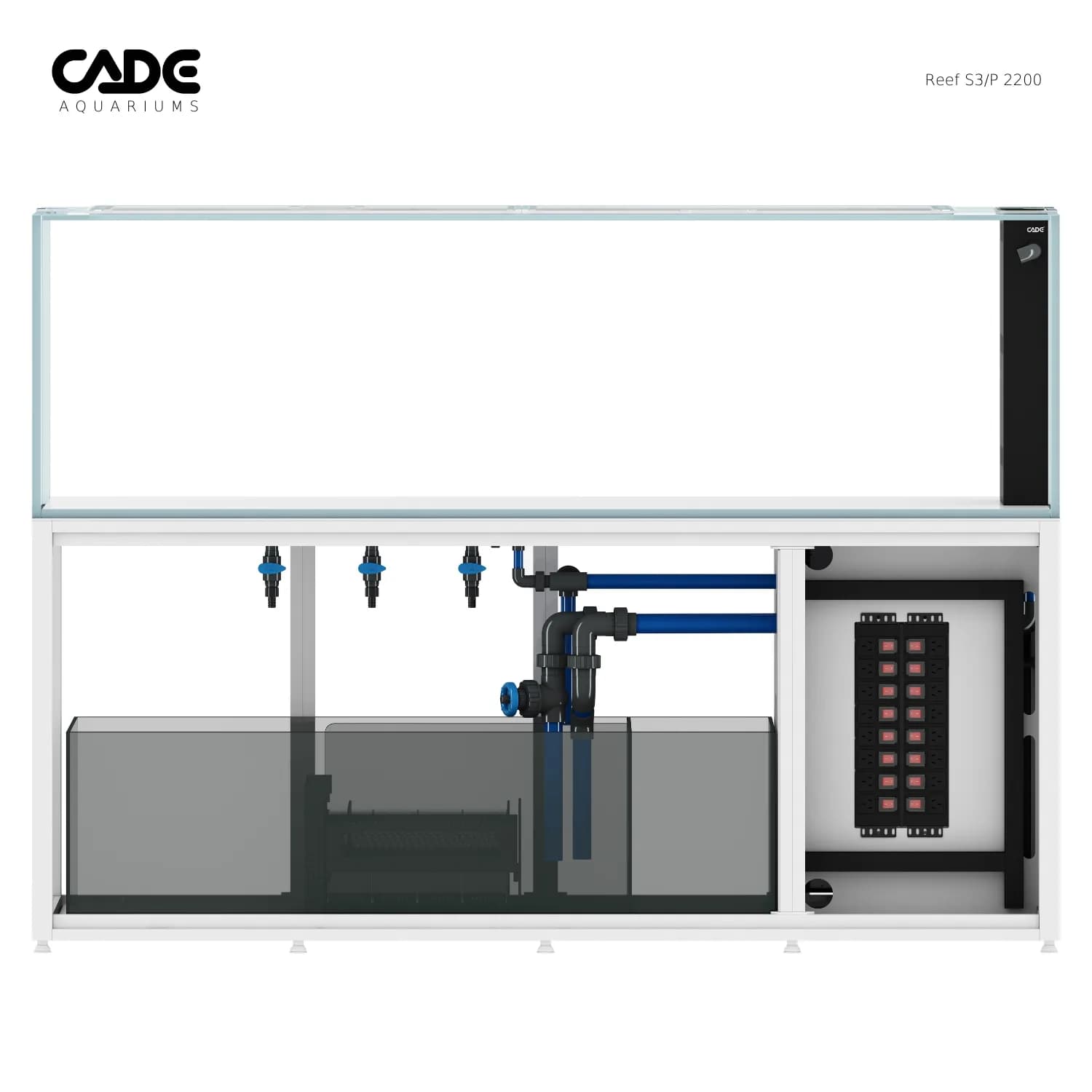

All internal tank-side plumbing is pre-installed via a base plate system. Screw-fit the cabinet's underside connections to the tank, connect the prefabricated manifold joiners, and you're set up.

  • Sanking Flowcolour pipes, taps and connections in blue and grey
  • 40mm main siphon drain with fine-tune gate valve, plus 40mm emergency drain
  • Feed taps for chillers or reactors, compatible with hard plumbing or 17mm barbed hose

The numbers

1144L
inhabitable capacity
1325L
total system capacity
19mm
Opti-Clear glass
82.9L
ATO reservoir

Full specifications

Tank dimensions (L×W×H)2200 × 800 × 650mm
Inhabitable capacity1144L / 302 gal
Total system capacity1325L / 350 gal
Glass19mm Opti-Clear, Euro braced (10mm), rimless
Light mount provisionsSide mount
Water intakeSlimline glass weir, 3 inlet vents (surface, mid, low)
Tank baseWhite, suited to bare-bottom applications
Cabinet dimensions2200 × 800 × 900mm
Cabinet buildAluminium frame and doors, 100% waterproof & corrosion-proof, powder-coated finish
Dry space (L×W×H)577 × 514 × 580mm
Power boards16-socket power boards with switches

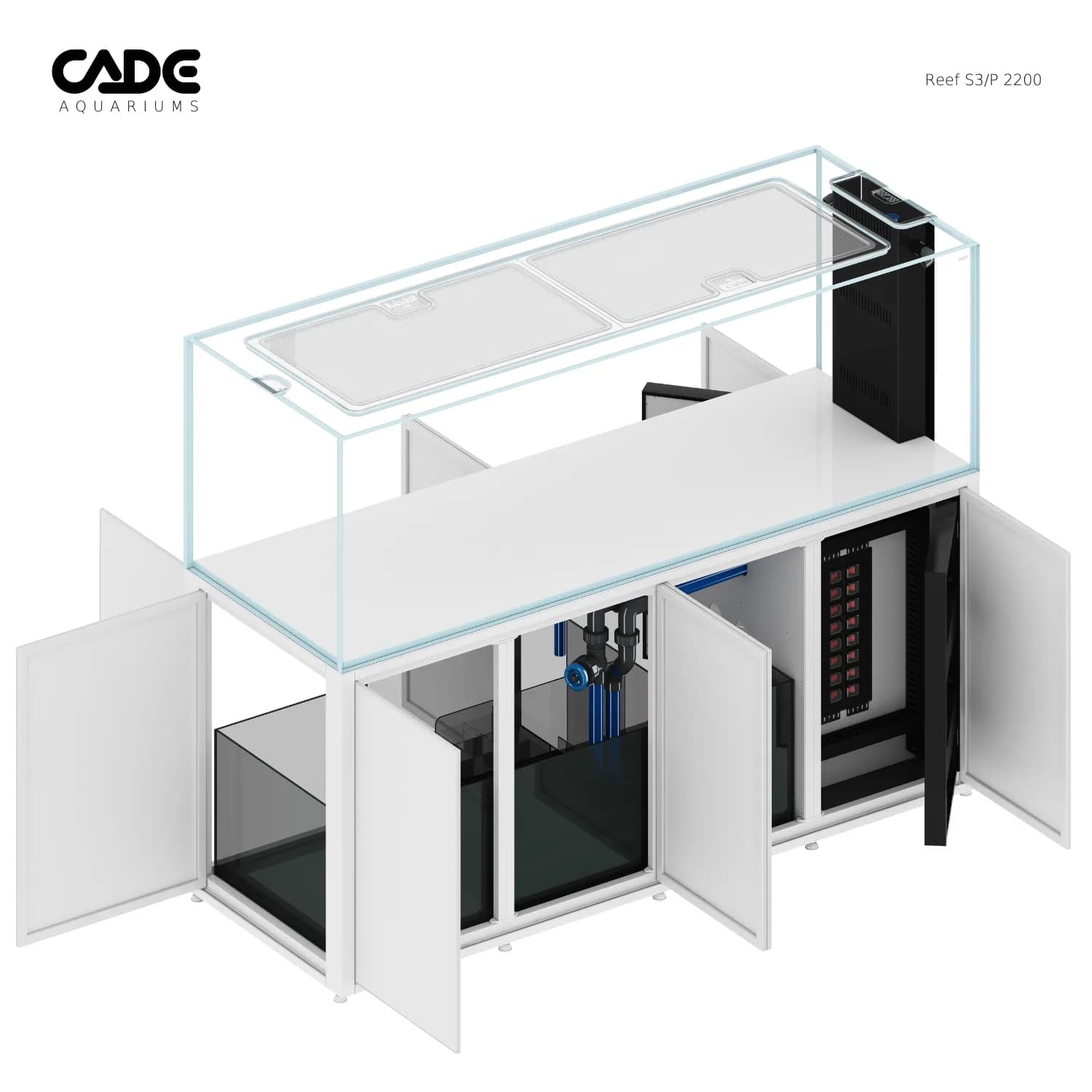

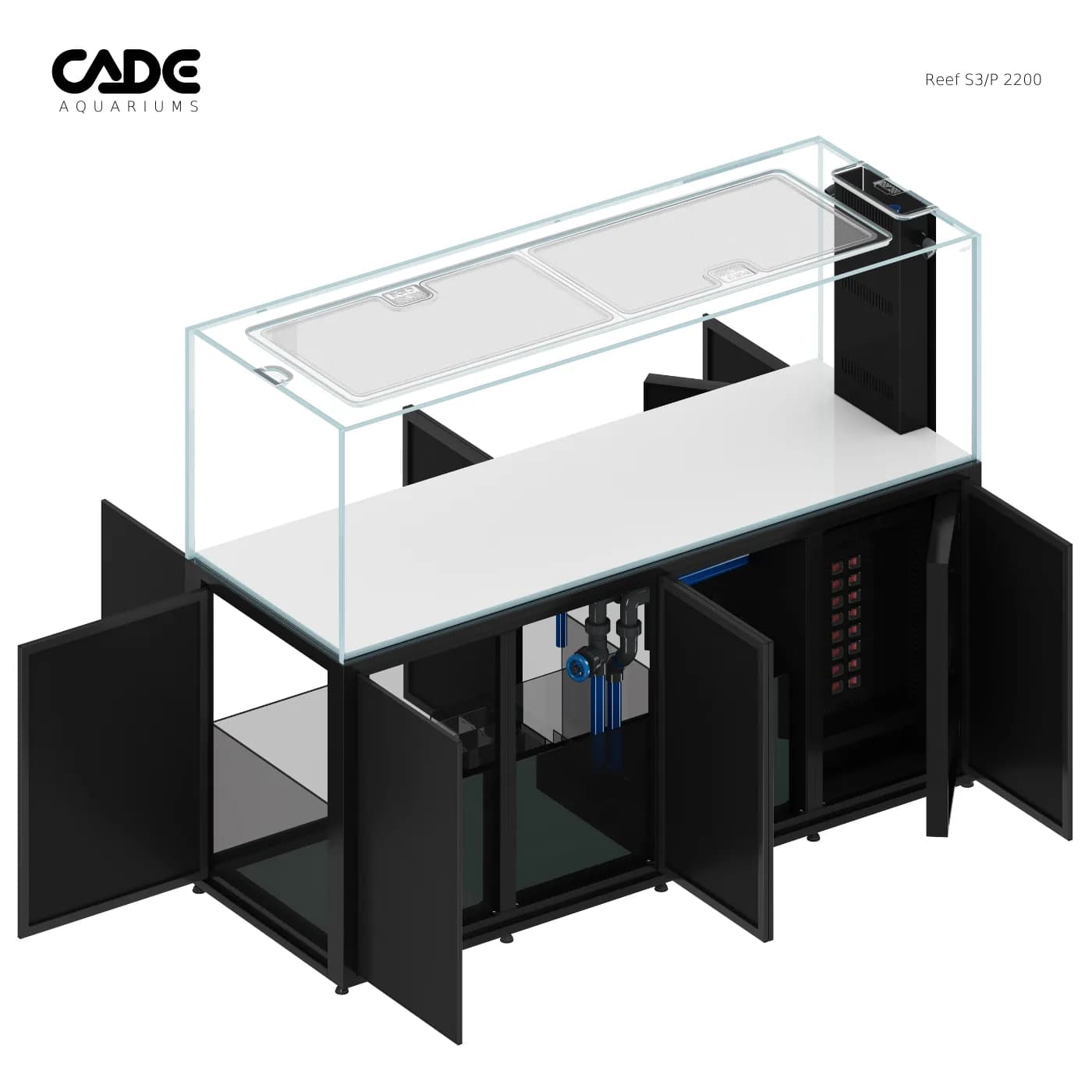

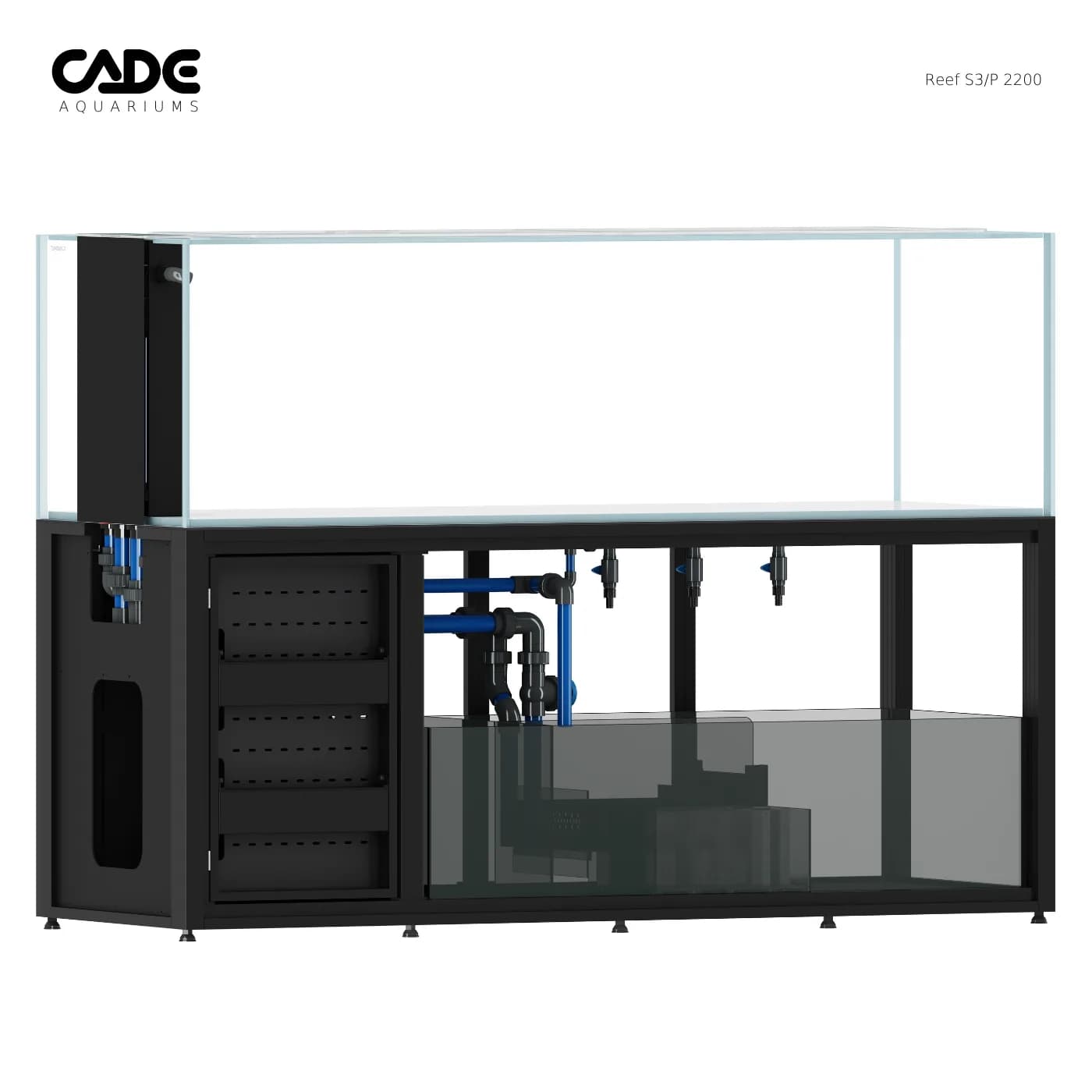

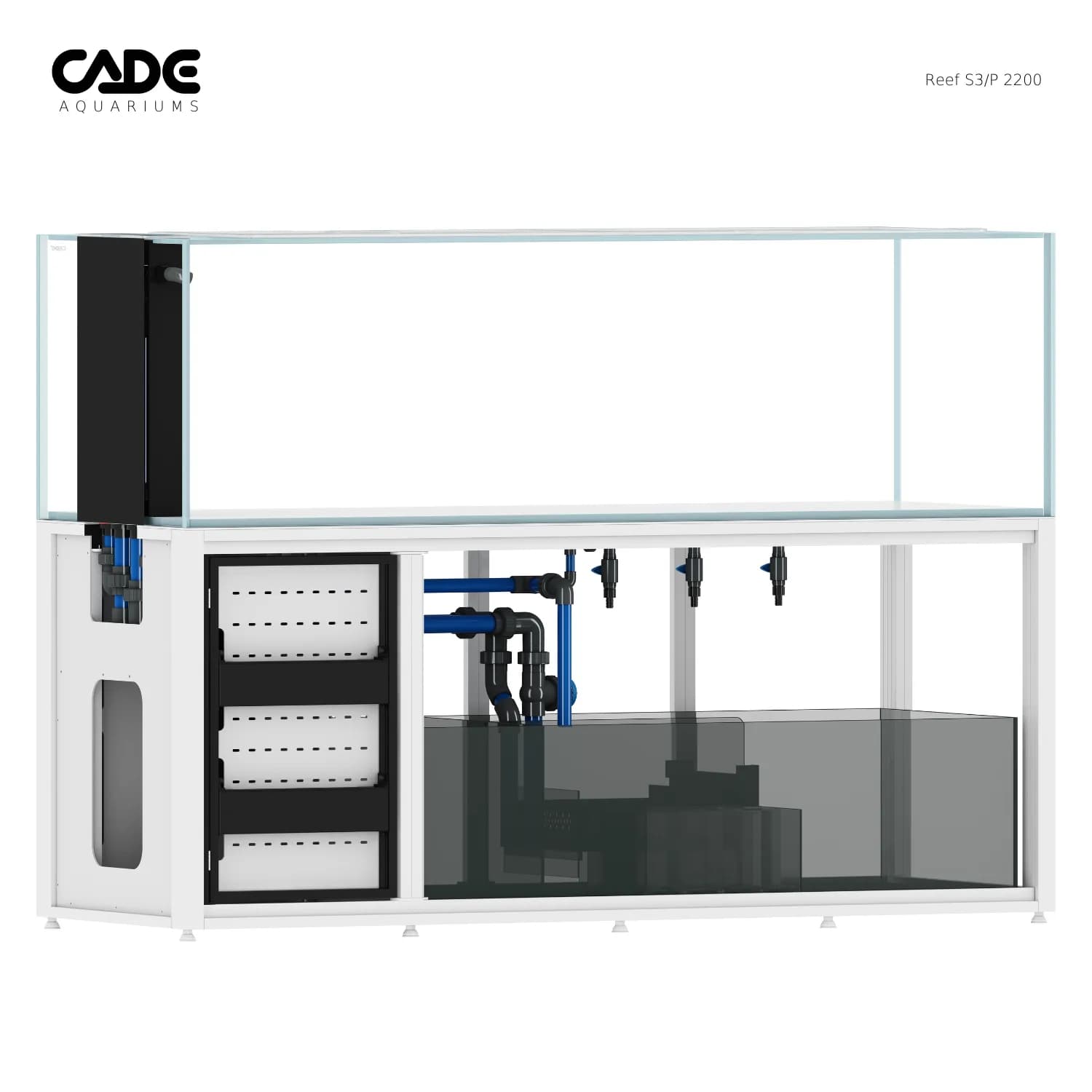

Cabinet accessDevice display doors on both dry-space sides; end-side door for sump access

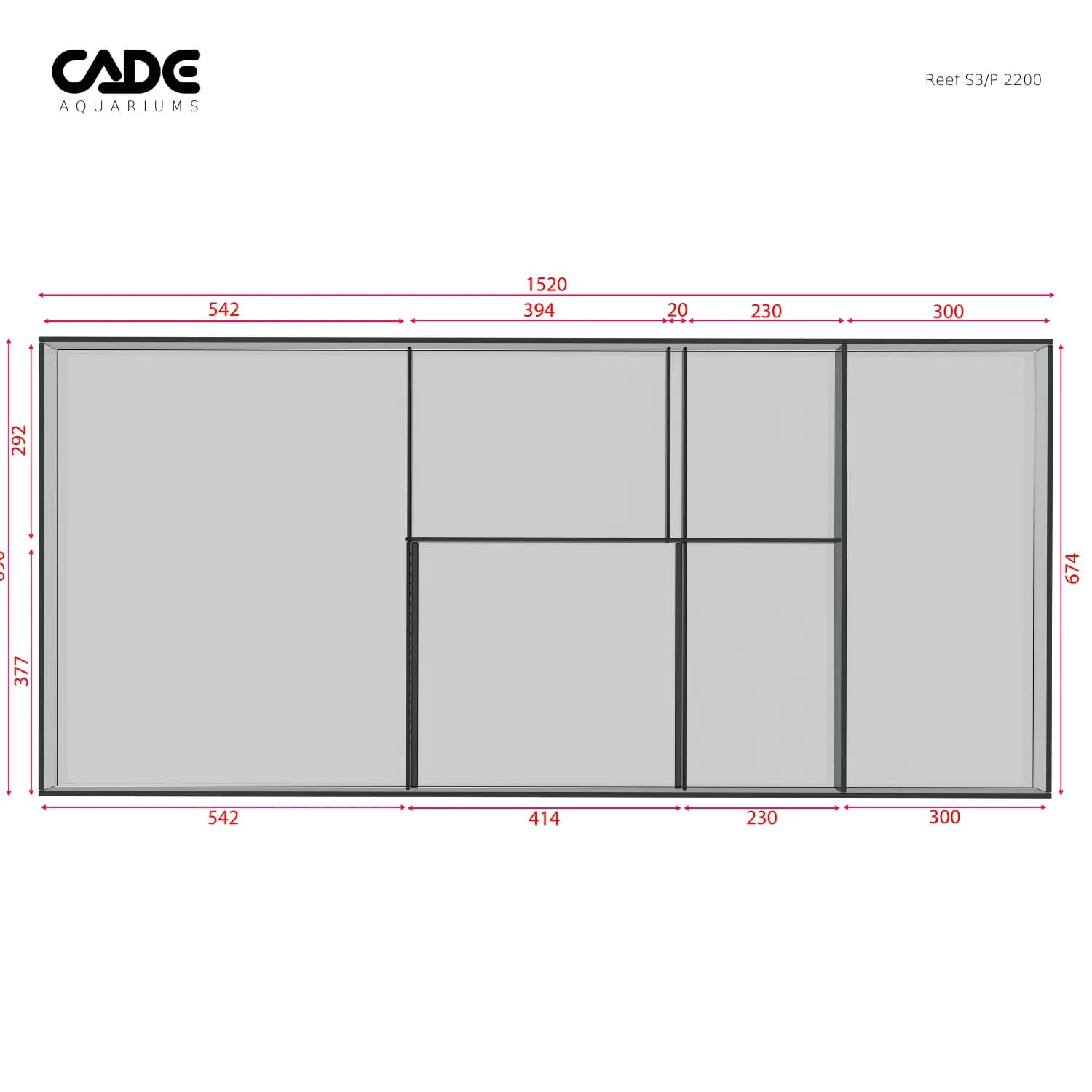

SumpTinted glass, raceway-style flow layout, roller-mat ready, Triton Algae Tray (usable as frag rack)
Filtration chambersProtein skimmer/reactor chamber; bio/chemical media chamber with removable baskets; return pump chamber
Reactor/chiller feeds3× outlets, 17mm external diameter
ATO reservoir82.9L / 21.9 gal (ATO device not supplied)

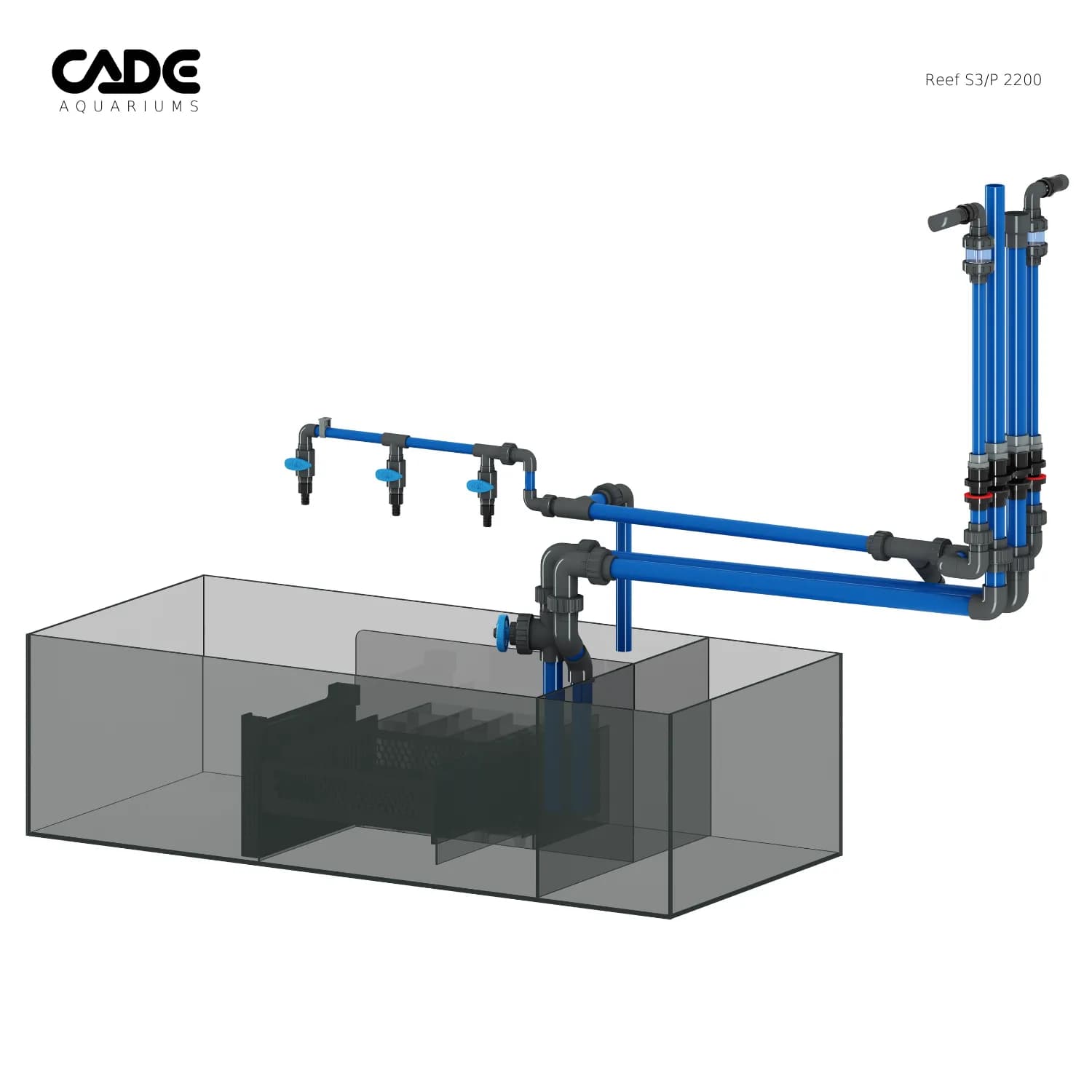

PlumbingPre-installed screw-fit Sanking Flowcolour system; 40mm main siphon drain with fine-tune gate valve; 40mm emergency drain; 32mm return splitting into 2× 25mm outlets with non-return valves
SKU936432C
